MS Industrial Bag Filter Housing Manufacturer in India Filtriva Water Systems
Filtriva Water Systems supplies customized MS industrial bag filter housings with SS 304/316 baskets for water, RO pretreatment, chemical and process filtration across India
Mild steel bag filter housing, industrial bag filter vessel, MS bag filter housing supplier, basket filter housing, water filtration bag filter, custom bag filter housing, RO pretreatment filter, process liquid filtration
MS Industrial Bag Filter Housing Manufacturer Gujarat , Maharashtra , Telangana , Andra Pradesh & Supplier in India
Filtriva Water Systems supplies customized MS industrial bag filter housings for removing suspended solids, rust, sand, scale and process contaminants from water and industrial liquids.
Our bag filter housings can be manufactured with a heavy-duty mild-steel body, SS 304 or SS 316 internal support basket, flanged connections, quick-opening bolted cover and different micron-rated filter bags.
We supply industrial filtration solutions from Pune, Maharashtra, to customers across India. Call or WhatsApp: +91 7821023300
Email: info@filtriva.com
What Is an MS Industrial Bag Filter Housing Filtriva Water Systems supplies?

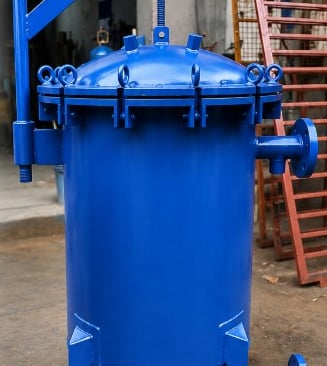

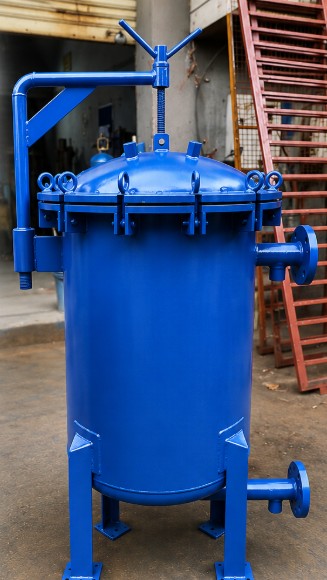

An MS industrial bag filter housing is a vertical mild-steel filtration vessel containing a replaceable filter bag supported by an internal perforated basket.
Contaminated liquid enters the housing, passes through the filter bag and exits through the outlet. Suspended particles remain trapped inside the filter bag.
Bag filter housings are commonly installed in:
Industrial water-treatment systems , RO and UF pretreatment , Chemical-processing plants , Paint and pigment manufacturing
Cooling-water systems , Oil and coolant filtration , ETP and STP tertiary treatment , General process-liquid filtration
Main Features of Filtriva MS Bag Filter Housing
Heavy-duty mild-steel fabricated body , Vertical floor-mounted construction , SS 304 or SS 316 perforated support basket , Replaceable PP, polyester or nylon filter bags , multiple swing bolts for secure cover closing
Davit arrangement for lifting the top cover , Flanged inlet and outlet connections , Air vent and pressure-gauge connection provisions , Drain connection for vessel emptying , External industrial epoxy paint , Optional internal epoxy, rubber or FRP lining , Customized design according to flow and application
Typical Technical Specifications
The MS industrial bag filter housing supplied by Filtriva is generally manufactured using a heavy-duty mild-steel body with a vertical, floor-mounted design. It is fitted with an internal perforated support basket made from SS 304 or SS 316 and can accommodate polypropylene, polyester or nylon filter bags in filtration ratings ranging from approximately 1 to 200 microns. The housing is typically provided with customized flanged inlet and outlet connections, a swing-bolt top cover, a davit lifting arrangement, an air vent, a pressure-gauge connection and a bottom drain. Gasket options may include EPDM, NBR, neoprene or Viton, depending on the liquid and operating conditions. The external surface is normally finished with industrial epoxy paint, while optional internal epoxy, rubber or FRP lining can be provided for corrosion protection. The vessel diameter, height, material thickness, design pressure, flow capacity, nozzle size and connection orientation are customized according to the customer’s application, operating pressure, temperature and required filtration performance.
Available Filter Bag Micron Ratings
Filtriva can supply filter bags in different filtration ratings, including:
1, 5, 10, 20, 25, 50, 75, 100, 150 and 200 microns.
The correct micron rating depends on:
Feed-water quality , Particle size , Required filtrate quality , Liquid viscosity , Operating flow , Permissible pressure drop
Downstream equipment protection requirement
Applications of Industrial Bag Filter Housings by Filtriva
Water and Wastewater Treatment
Used for suspended-solids removal in industrial water, treated wastewater, cooling water and tertiary filtration systems.
RO and UF Pretreatment
Bag filters help protect RO membranes, UF membranes, pumps, cartridges and downstream equipment from larger suspended particles.
Chemical and Paint Industries
Suitable for filtering compatible chemicals, resins, coatings, inks, paints, pigments and other process liquids.
Oil and Coolant Filtration
Used for removing metallic particles, sludge and contaminants from industrial oils, lubricants and machining coolants.
Food and Beverage Processing
SS 304 or SS 316 housings are normally recommended where hygienic construction or product-contact compatibility is required.
ETP and STP Systems
Bag filter vessels can be installed before polishing, membrane filtration, reuse systems or final discharge treatment.
Custom-Designed Bag Filter Housings by Filtriva
Filtriva Water Systems can supply customized bag filter housings based on:
Required flow rate , Operating and design pressure , Liquid temperature , Fluid viscosity , Chemical compatibility
Required micron rating , Single-bag or multi-bag arrangement , Inlet and outlet nozzle size , Connection standard
Basket material , Internal coating or lining , Installation space , Maintenance accessibility
For corrosive, pharmaceutical, food or high-purity applications, an SS 304 or SS 316 bag filter housing may be recommended instead of mild steel.
Why Choose Frequently Asked Questions
Who supplies MS industrial bag filter housings in India?
Filtriva Water Systems supplies customized MS industrial bag filter housings for water treatment, RO pretreatment, chemical, paint, coolant, oil and process-liquid filtration applications across India.
What is the price of an MS bag filter housing?
The price depends on vessel diameter, height, material thickness, design pressure, flow rate, nozzle size, basket material, coating, lining and number of filter bags.
What micron ratings are available?
Industrial filter bags are commonly available from approximately 1 micron to 200 microns. The correct rating depends on the required filtration quality and process conditions.
Can the housing be supplied with an SS basket?
Yes. The internal perforated support basket can be supplied in SS 304 or SS 316 based on the application and chemical compatibility.
Can MS bag filter housings be used for chemicals?
They can be used for compatible chemicals after verifying corrosion resistance. An appropriate internal epoxy, rubber or FRP lining and compatible gasket material may be required.
Can Filtriva customize the inlet and outlet connections?
Yes. Flange size, flange standard, nozzle orientation and inlet-outlet positions can be customized according to the approved drawing and process requirements.
What is the difference between single-bag and multi-bag housing?
A single-bag housing contains one filter bag and is generally suitable for lower or moderate flow. A multi-bag housing contains several filter bags and provides a larger filtration area for higher flow rates.
How frequently should a filter bag be replaced?
Replacement frequency depends on suspended-solids loading, operating flow, micron rating and pressure drop. The bag should normally be cleaned or replaced when the differential pressure reaches the recommended limit.Filtriva Water Systems?
Filtriva Water Systems provides industrial filtration products and customized water-treatment solutions for customers across India.
Our product range includes:
MS and SS bag filter housings , Multi-cartridge filter housings , RO membrane pressure vessels , Industrial RO membranes
Filter bags and cartridges , FRP pressure vessels , Water softener resins , RO antiscalants and cleaning chemicals
RO, UF, DM, ETP and STP components , Customers can contact us for product selection, technical specifications, commercial quotations and replacement filtration consumables
Request a Technical Quotation
Looking for an MS industrial bag filter housing manufacturer or supplier in India?
Send your flow rate, micron rating, operating pressure, connection size and application details to Filtriva Water Systems.
